Brand Name: ID TECH
Manufacturer Part Number: IDSK-534833TEB

Product Line: SREDKey
Product Type: Payment Terminal

Description

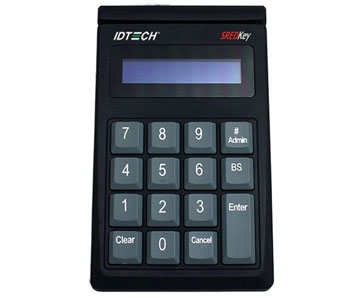

SREDKey is an encrypted key pad with an LCD and an encrypted MagStripe reader that offers retailers a complete and reliable security solution that meets the PCI-PTS certification. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SREDKey ensures all data transactions are protected through secure point to point encryption reducing fraud and data compromises.

Interfaces/Ports
Interfaces/Ports: USB

Keyboard/Keypad
Number of Keys: 15

Additional Information:
Operating Life: 4,000,000 key operations for each key and 1,000,000 card cycles
Card Thickness: .015 to .038 inches (0.39 to 1mm)
Cable Length: 6-foot (1.83m)
Cable Connector: USB-A connector
Keyboard Material: ABS, Meets flammability spec. UL94HB
Key Character Printing: Laser

Certifications & Standards: FCC class B, CE
Green Compliance Certificate/Authority: REACH, RoHS 2

Physical Characteristics
Color: Black
Height: 1.5"
Length: 6.3"
Width: 3.8"

Humidity: 90% Non-condensing
Temperature:
- 32°F (0°C) to 131°F (55°C) Operating
- 4°F (-20°C) to 149°F (65°C) Storage

Power Description
Input Voltage: 5 V DC

Reliability
MTBF: 60000 Hour

Technical Information
Built-in Devices: Magnetic Stripe Reader
Display Screen Type: LCD
Encryption: AES, Triple DES

Warranty
Limited Warranty: 1 Year
