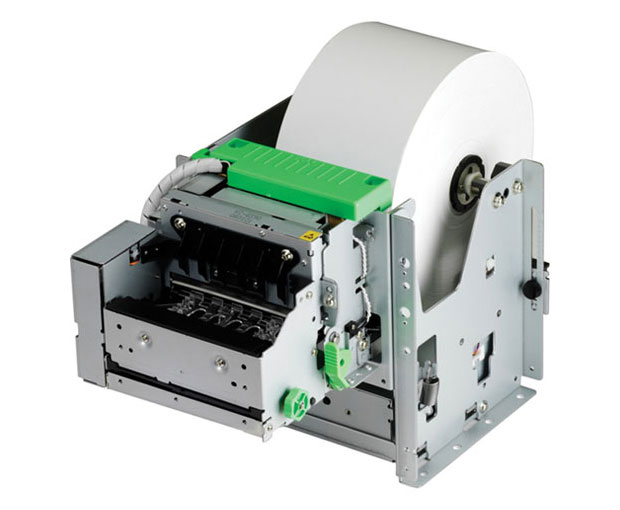

With a compact footprint and support for smaller paper widths, the TUP500 is a welcomed addition to Star Micronics' kiosk printer line to provide solutions to a great range of applications. The TUP500 features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 Million Lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The Presenter also uses Star Micronics document capture technology to retract receipts left by the user, resulting in increased document security and a cleaner operation area.

Product Series : TUP500
Product Model : TUP592-24
Product Type : Direct Thermal Printer

Technical Information
Recommended Use : Receipt Print
Print Color : Monochrome
Maximum Mono Print Speed : 8.66 in/s
Maximum Print Resolution : 203 dpi
Maximum Print Width : 3.15"

Interfaces/Ports
Parallel Port : Yes
Serial Port : Yes
USB : Yes

Media Types & Handling
Media Type : Receipt
Maximum Roll Diameter : 5.91"
Maximum Label Width : 3.25"

Network & Communication
Ethernet : Yes

Physical Characteristics
Form Factor : Desktop
Height : 7"
Width : 6.3"
Depth : 9.2"

Platform Supported : Mac, PC
Media Sensor : Out Of Paper Sensor, Paper Low Sensor, Reflective Media Sensor
Ethernet Technology : Ethernet
Cutting Method : Automatic
Features : Auto-cutter

Input Voltage : 24 V DC
Media Thickness : 5.91 mil

Warranty
Limited Warranty : 3 Year
